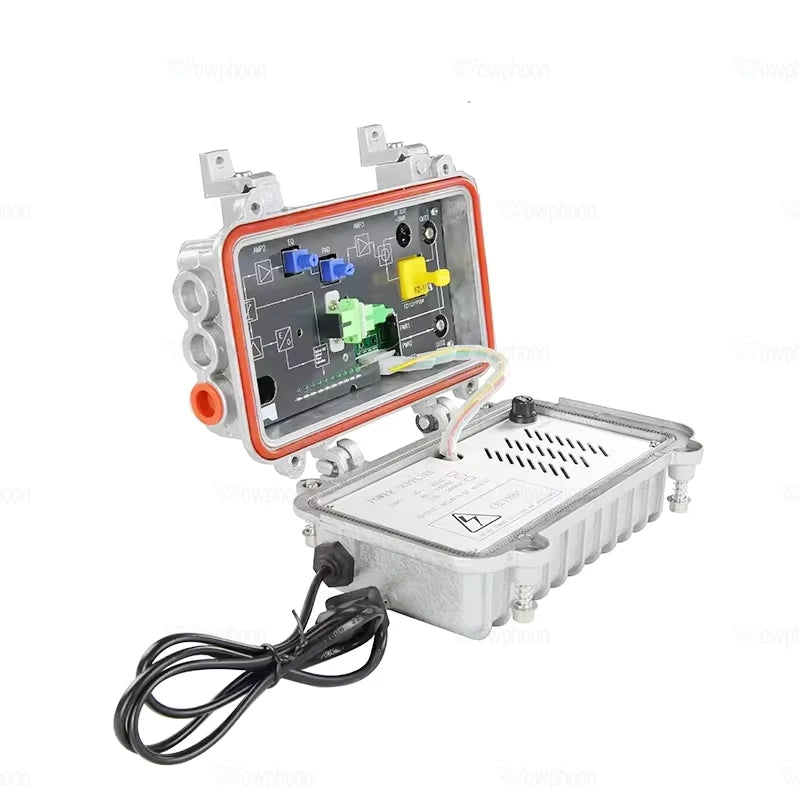

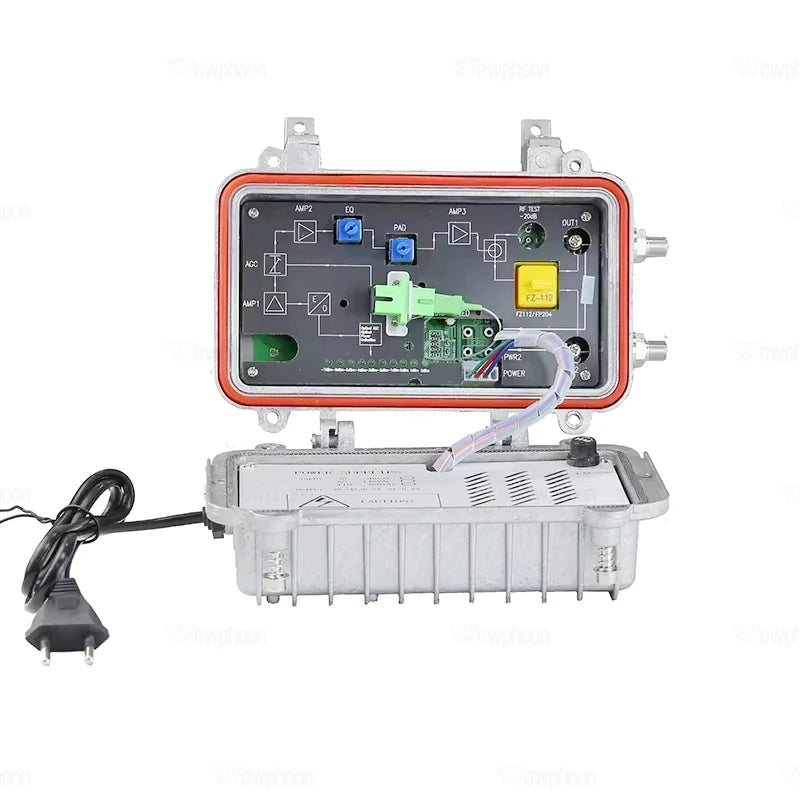

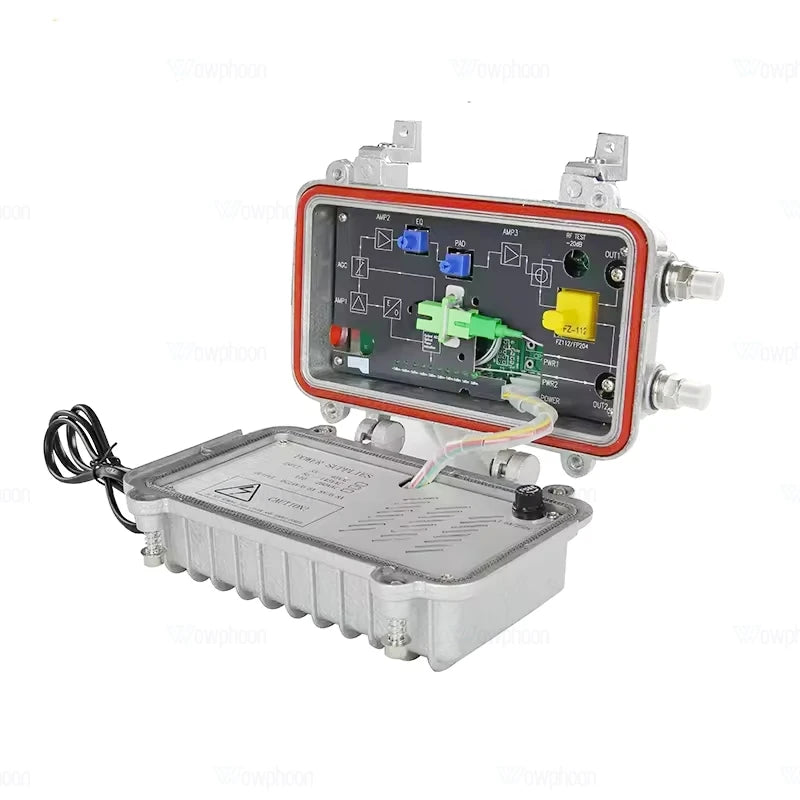

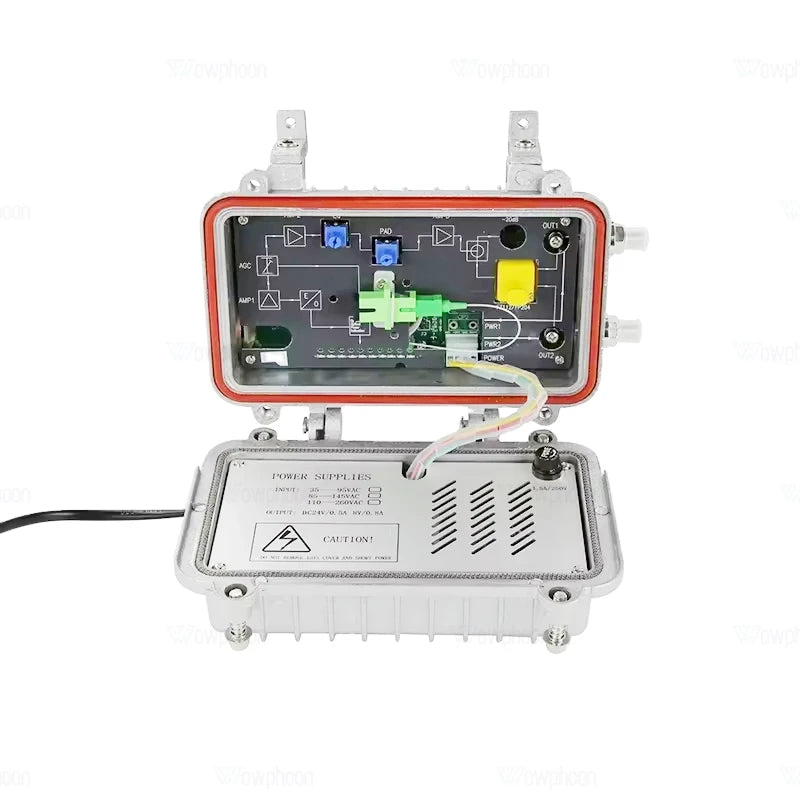

The Outdoor FTTH CATV Optical Receiver is designed for reliable fiber-to-building (FTTB) and fiber user access networks. Featuring a waterproof IP65 aluminum housing, advanced GaAs low-noise amplification, and AGC control technology, it provides stable optical signal conversion for analog and digital CATV applications. With dual RF outputs, surge protection, and easy installation options, it is suitable for outdoor network deployments and triple-play integration with ONU or EOC systems.
SPECIFICATIONS
• Product Type: Outdoor Dual Output Optical Receiver
• Application: FTTB, FTTH, CATV Fiber Access Networks
• Signal Type: Analog & Digital CATV Signal Reception
• Fiber Type: Single Mode
• Optical Wavelength Range: 1100–1600nm
• Receiving Optical Power: -8dBm to +2dBm
• Bandwidth: 40–750MHz / 862MHz / 1006MHz
• Optical Connector: FC/APC & SC/APC
• Optical Return Loss: >45dB
• Power Source: AC Powered
• Power Supply Options: AC35–90V / AC140–265V (Customizable)
• Power Consumption: ≤10W
• RF Output: Dual Outputs
• AGC Control Range: +2dBm to -8dBm

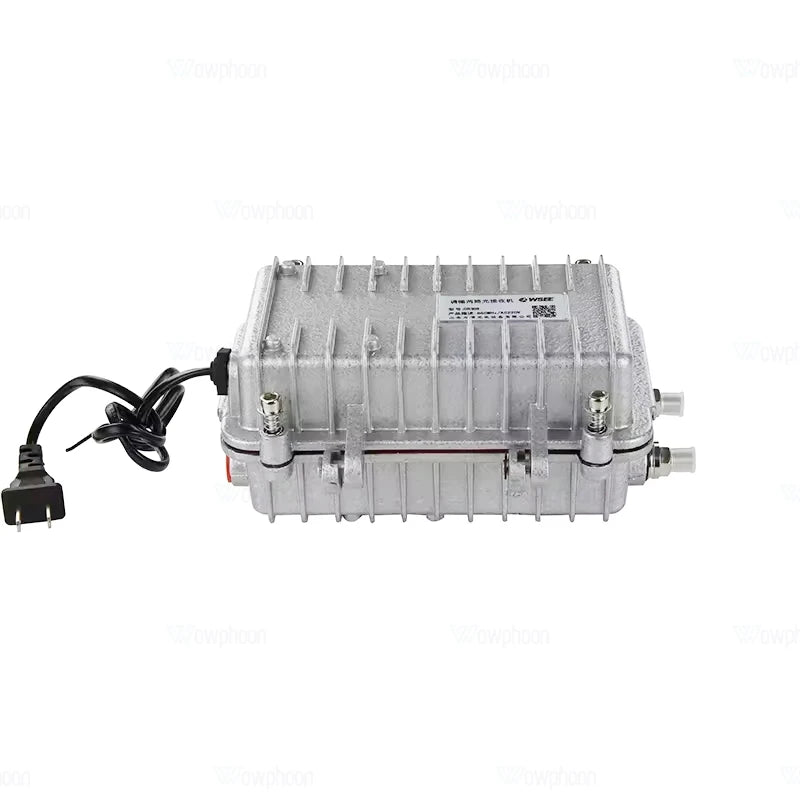

• Housing Material: Waterproof Aluminum Alloy
• Waterproof Rating: IP65
• Installation: Wall Mount or Steel Strand Mount
• Features:
• GaAs Low-Noise Amplifier Circuit
• Stable Output Signal with AGC Control
• EMC Shielded Design
• LED/Digital Output Power Display
• Surge & Lightning Protection
• Quick Fuse Replacement Design
• Triple Network Integration Support
