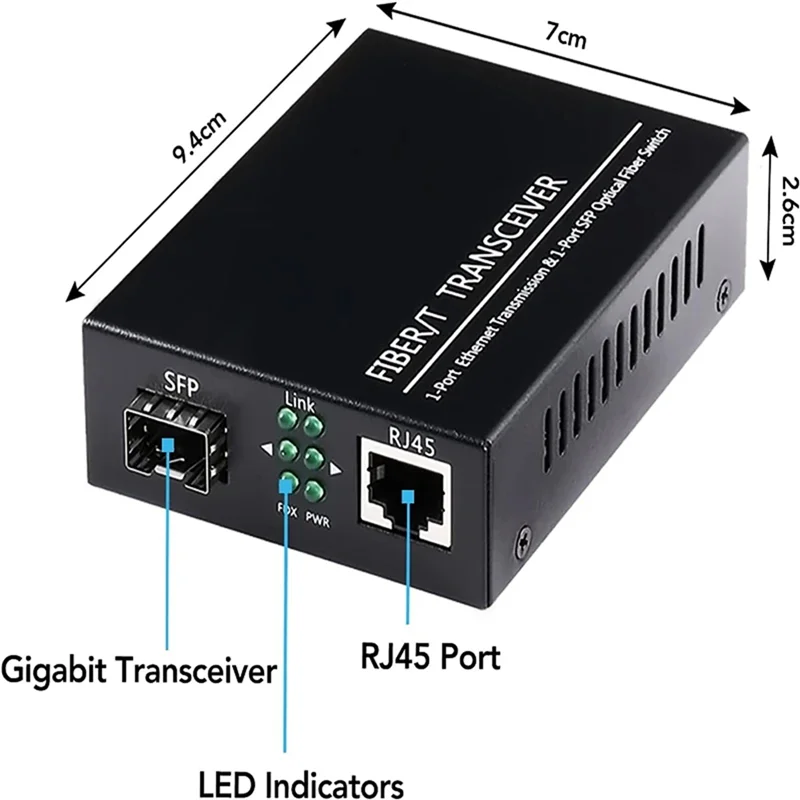

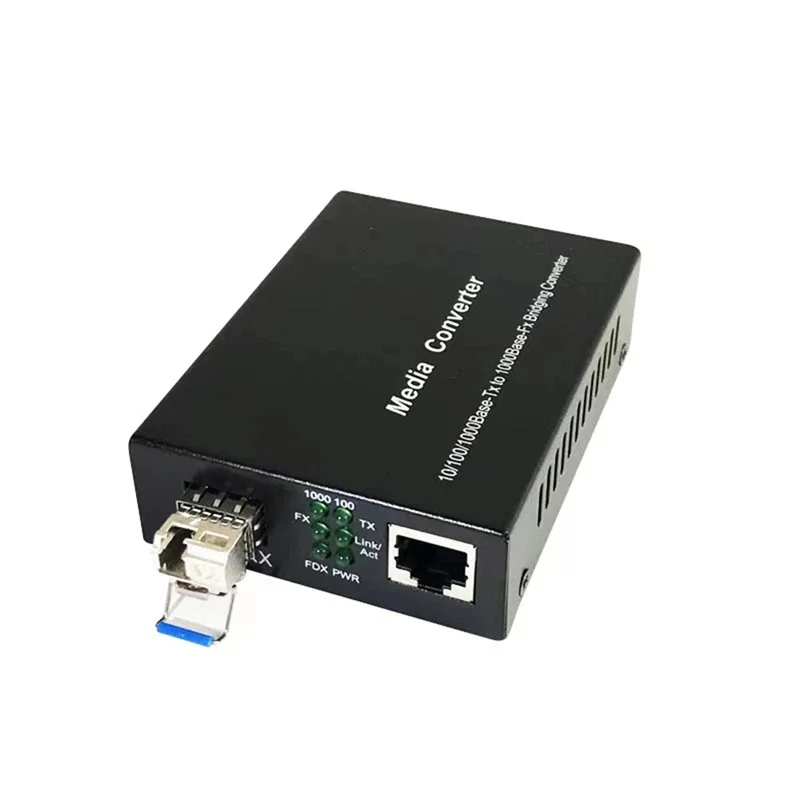

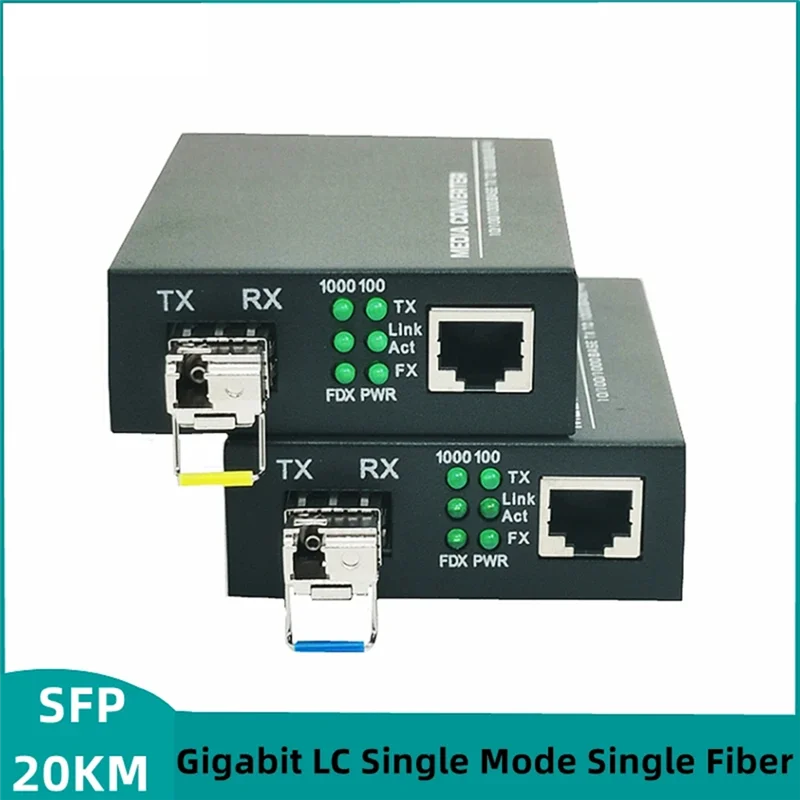

Upgrade your network with this Gigabit Single Mode Fiber Optic Media Converter Kit, designed for fast and reliable fiber-to-Ethernet connectivity. Featuring dual LC single-mode transceivers, it supports high-speed data transmission up to 1.25Gbps over distances of up to 20km. With plug-and-play installation, auto-negotiating RJ45 connectivity, wide voltage support, and LED status indicators, it is ideal for enterprise, surveillance, industrial, and long-distance networking applications.
SPECIFICATIONS
• Product Type: Gigabit Fiber Optic Media Converter Kit
• Network Speed: 10/100/1000Mbps Auto-Negotiation
• Fiber Speed: 1.25Gbps
• Fiber Type: Single Mode LC (UPC)
• Wavelengths: 1310nm / 1550nm
• Transmission Distance: Up to 20km
• Ethernet Port: RJ45 (10/100/1000Mbps)
• RJ45 Features: Auto-Negotiation, Full/Half Duplex, Auto MDI/MDIX
• Fiber Interface: LC Single Fiber
• Standards Supported: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab
• Power Input: 5V / 1A
• Input Voltage: 100V–240V
• Operating Temperature: -20°C to 60°C
• Material: Metal Housing
• Color: Black
• Installation: Plug-and-Play
• LED Indicators: Power, TX, FX Link/ACT & FDX Status

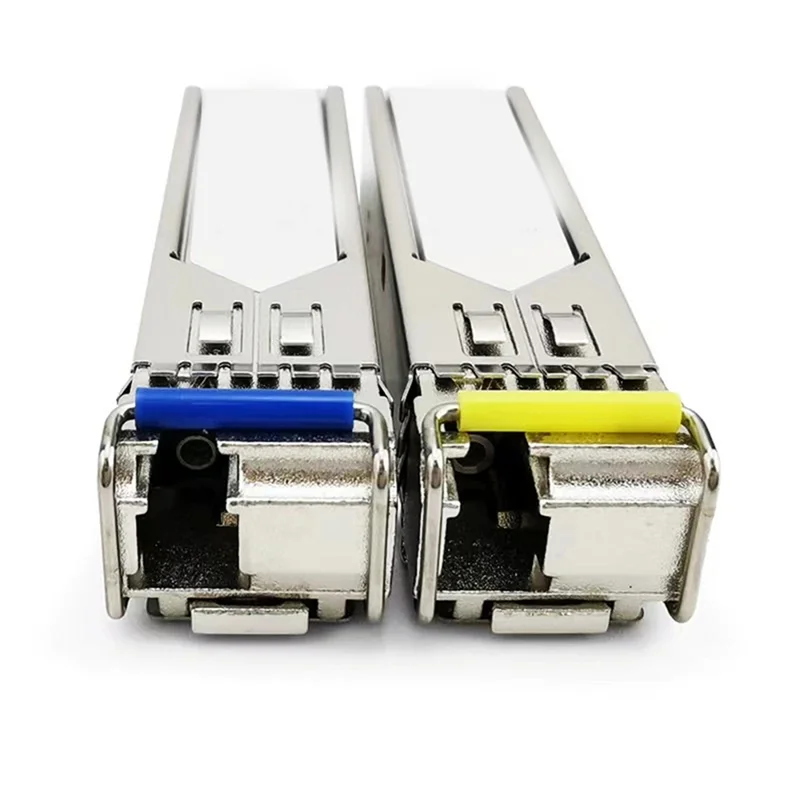

• Included Modules: 1310nm & 1550nm Single Mode SFP Optical Transceivers
PACKAGE INCLUDES

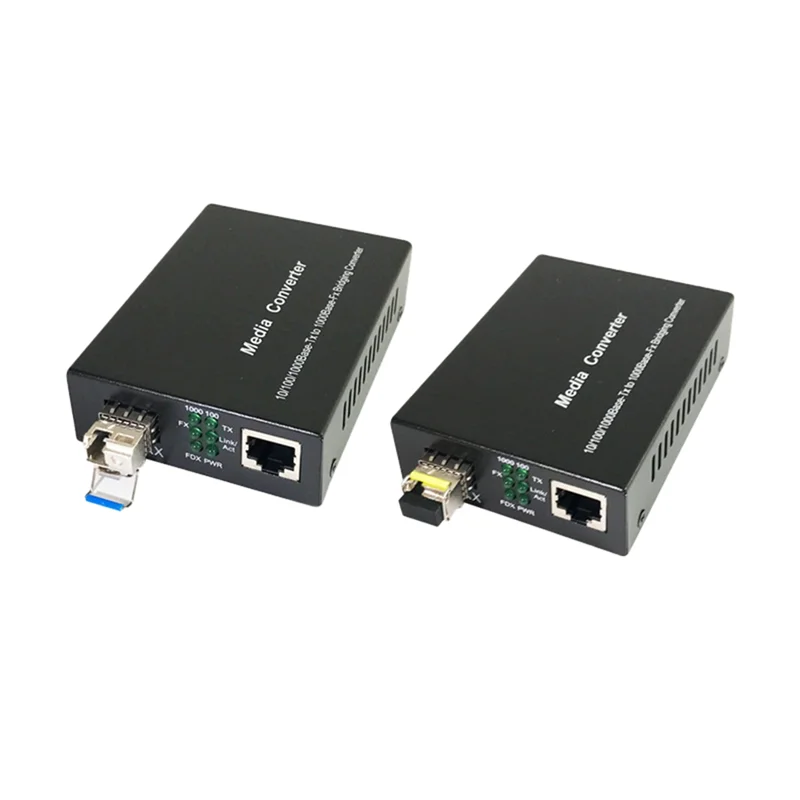

• 1 × Gigabit Single Mode Fiber Media Converter (1310nm)
• 1 × Gigabit Single Mode Fiber Media Converter (1550nm)
